2.86 “ Small Size 376 RGB×960 Dots TFT LCD Display Module Screen
N286-3796KBWIG01-C24 is a small-sized 2.86-inch IPS wide-angle TFT-LCD display module. This small-sized TFT-LCD panel has a resolution of 376×960 pixels, The display module is built-in with ST7701S controller IC, supports MIPI interface, a supply voltage (VDD) range of 2.4V~3.3V, module brightness of 350 cd/m² (typical value), and contrast of 1200(typical value).
This 2.86 inches TFT- LCD display module is portrait mode, and the panel adopts wide angle IPS (In plane Switching) technology. The viewing range is left: 80/right: 80/up: 80/down: 80 degrees. The panel has a wide range of perspectives, bright colors, and high-quality images with saturated nature. It is very suitable for applications such as wearable devices, handheld devices, security monitoring system. The operating temperature of this module is -20 ℃ to 70 ℃, and the storage temperature is -30 ℃ to 80 ℃.
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 2.86 inch |
| Pixels | 376×960 Dots |
| View Direction | IPS/Free |
| Active Area (A.A) | 26.51×67.68 mm |
| Panel Size | 31.2×76.6×2.13 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 262K |
| Brightness | 320 (Min)cd/m² |
| Interface | MIPI |
| Pin Number | 24 |
| Driver IC | ST7701S |
| Backlight Type | 4 CHIP-WHITE LED |
| Voltage | 2.4~3.3 V |
| Weight | 1.2 |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |

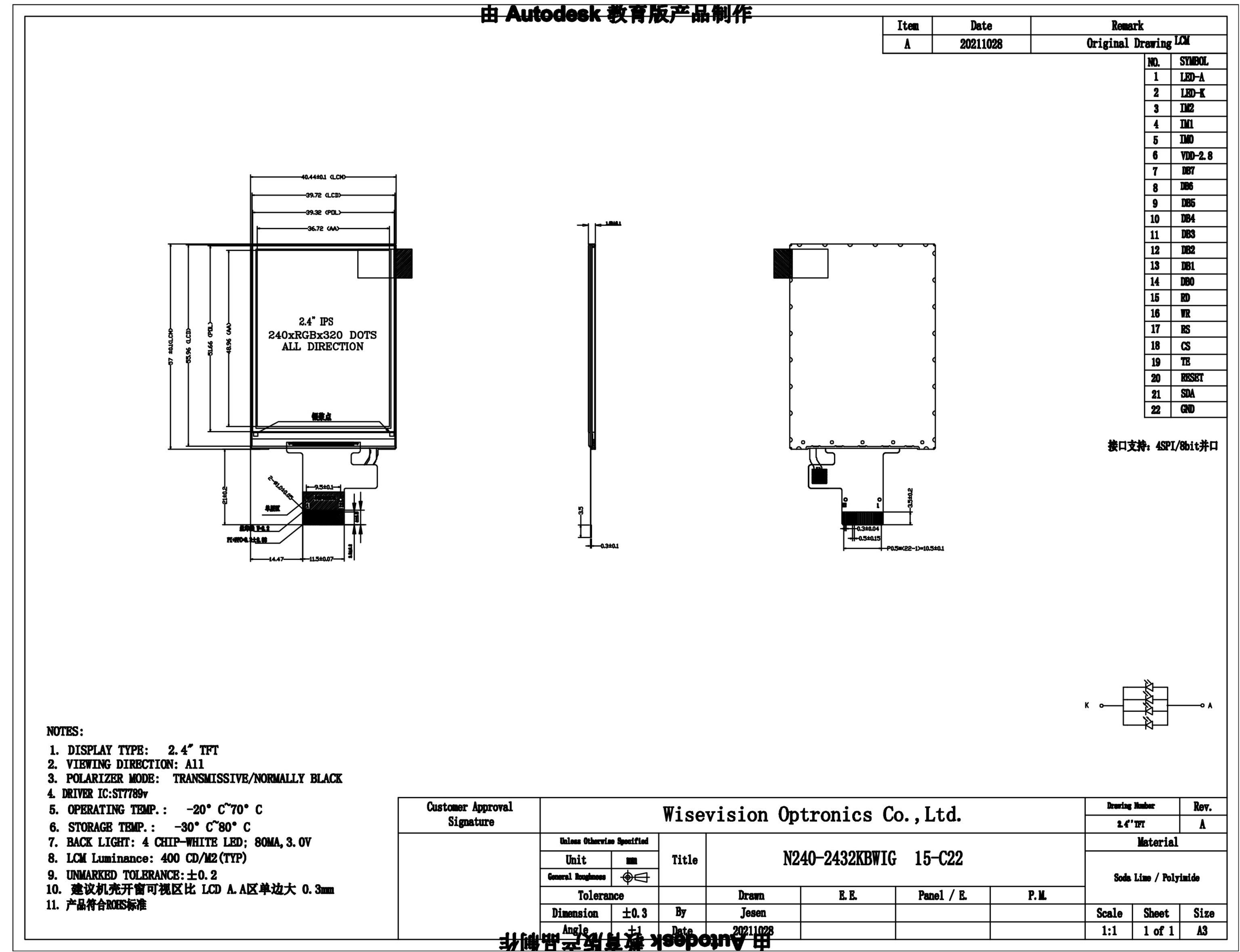

Mechanical Drawing
