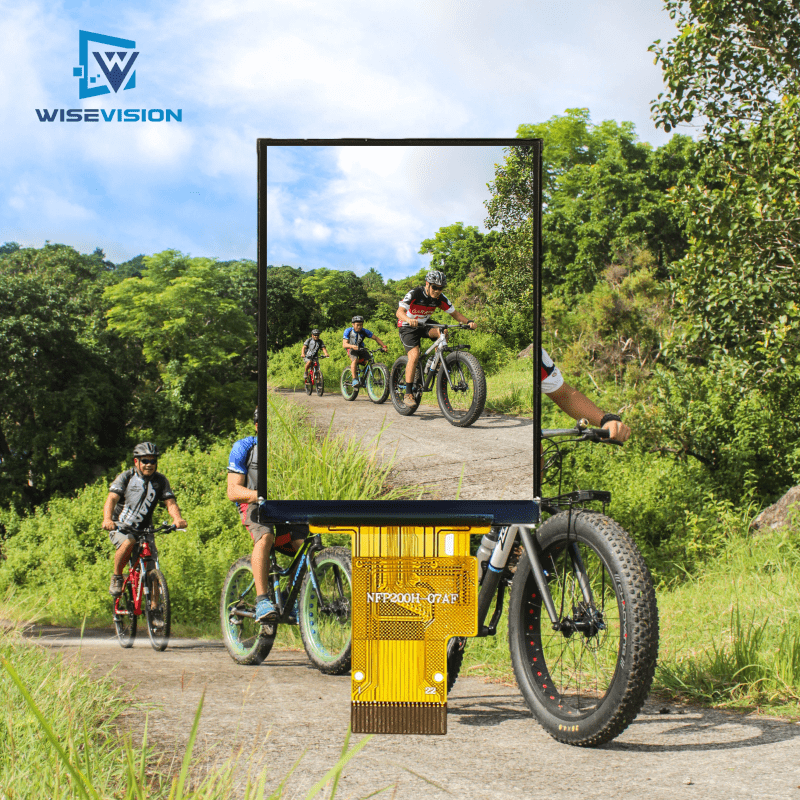

2.45 “ Middle Size 172RGB*378 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS TFT-LCD |
| Brand name | WISEVISION |
| Size | 2.45 inch |
| Pixels | 172RGB*378 |
| View Direction | 12：00 |
| Active Area(A.A) | 25.8(H) x 56.7(V) mm |
| Panel Size | 28(H) x 61.35(V) x2.5(D) mm |
| Color arrangement | RGB Vertical stripe |
| Color | White |
| Brightness | 350 (Min)cd/m² |
| Interface | 4 Line SPI |
| Pin Number | 16 |
| Driver IC | ST77925 |
| Backlight Type | 4 WHITE LED |
| Voltage | 2.5~3.3 V |
| Weight | 1.1g |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
N245-1737KTWPG01-C16 is a 2.45 inch TFT-LCD with a resolution of 172RGB*378 pixels. supports various interfaces such as 4 Line SPI, providing flexibility for seamless integration into any project. The display's brightness of 350cd/m² ensures clear, vivid visuals even in bright lighting conditions. The monitor uses the advanced driver IC to ensure smooth and efficient performance.
N245-1737KTWPG01-C16 adopts wide angle (In plane Switching) technology. The viewing range is left: 25/right: 25/up: 25/down: 25degrees. a contrast ratio of 1000:1, and an aspect ratio of 3:4 (typical value). The supply voltage for analog is from 2.5V to 3.3V (the typical value is 2.8V).The IPS panel has a wide range of viewing angles, bright colors, and high-quality images that are saturated and natural. This TFT-LCD module can work under temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃.
New Vision Technology Co., Ltd. is headquartered in Shenzhen and has been serving customers for 15 years with its strong R&D capabilities. We are committed to providing high-quality display and technical services to customers around the world. Our products, such as the N245-1737KTWPG01-C16, are known for their reliability, stability, and efficiency.
Mechanical Drawing
What we can do:
Wide range of display: Including Monochrome OLED,TFT,CTP;
Display solutions: Including make tooling,customized FPC,backlight and size;Technical support and design-in
Our advantages:
A deep and comprehensive understanding of the end applications;
Cost and performance advantage analysis of various display types;
Explanation and cooperation with customers to decide the most suitable display technology;
Working on the continuous improvements at process technologies, product quality, cost saving, delivery schedule, and so on.
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PCS.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 5-7 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
