T-1.69 “ Small Size 240 RGB×280 Dots TFT LCD Display Module Screen
General Description
| Display Type | IPS-TFT-LCD |
| Brand name | WISEVISION |
| Size | 1.69 inch |
| Pixels | 240×280 Dots |
| View Direction | IPS/Free |
| Active Area (A.A) | 27.97×32.63 mm |
| Panel Size | 30.07×37.43×1.56 mm |
| Color arrangement | RGB Vertical stripe |
| Color | 65K |
| Brightness | 350 (Min)cd/m² |
| Interface | SPI / MCU |
| Pin Number | 12 |
| Driver IC | ST7789 |
| Backlight Type | 2 CHIP-WHITE LED |
| Voltage | 2.4~3.3 V |
| Weight | TBD |
| Operational Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80°C |
Product Information
N169-2428THWIG03-H12 is a compact 1.69-inch IPS wide-angle TFT-LCD display module featuring a resolution of 240×280 pixels. Equipped with an integrated ST7789 controller IC, this module supports multiple interface options, including SPI and MCU, and operates within a voltage range of 2.4V–3.3V (VDD). With a brightness of 350 cd/m² and a 1000:1 contrast ratio, it delivers sharp and vibrant visuals.
Designed in portrait mode, this 1.69-inch TFT-LCD panel utilizes IPS (In-Plane Switching) technology, ensuring wide viewing angles of 80° (left/right/up/down). The display offers rich colors, high image quality, and excellent saturation, making it ideal for applications such as:
- Wearable devices
- Handheld electronics
- Smart locks
- Security monitoring systems
The module operates reliably in temperatures ranging from -20°C to 70°C, with a storage tolerance of -30°C to 80°C.
Whether you're a tech enthusiast, gadget lover, or professional seeking superior display performance, the N169-2428THWIG03-H12 is an excellent choice. Its compact size, advanced specifications, and versatile compatibility make it a high-performance solution for seamless integration into various devices and applications.
Key Improvements:
- Consistency – Corrected "1.90 inches" to "1.69-inch" (assuming the initial mention was a typo).
- Enhanced Readability – Structured the text with bullet points for better clarity.
- Conciseness – Removed redundant phrases while retaining all technical details.
- Smoother Flow – Improved transitions between specifications and applications.

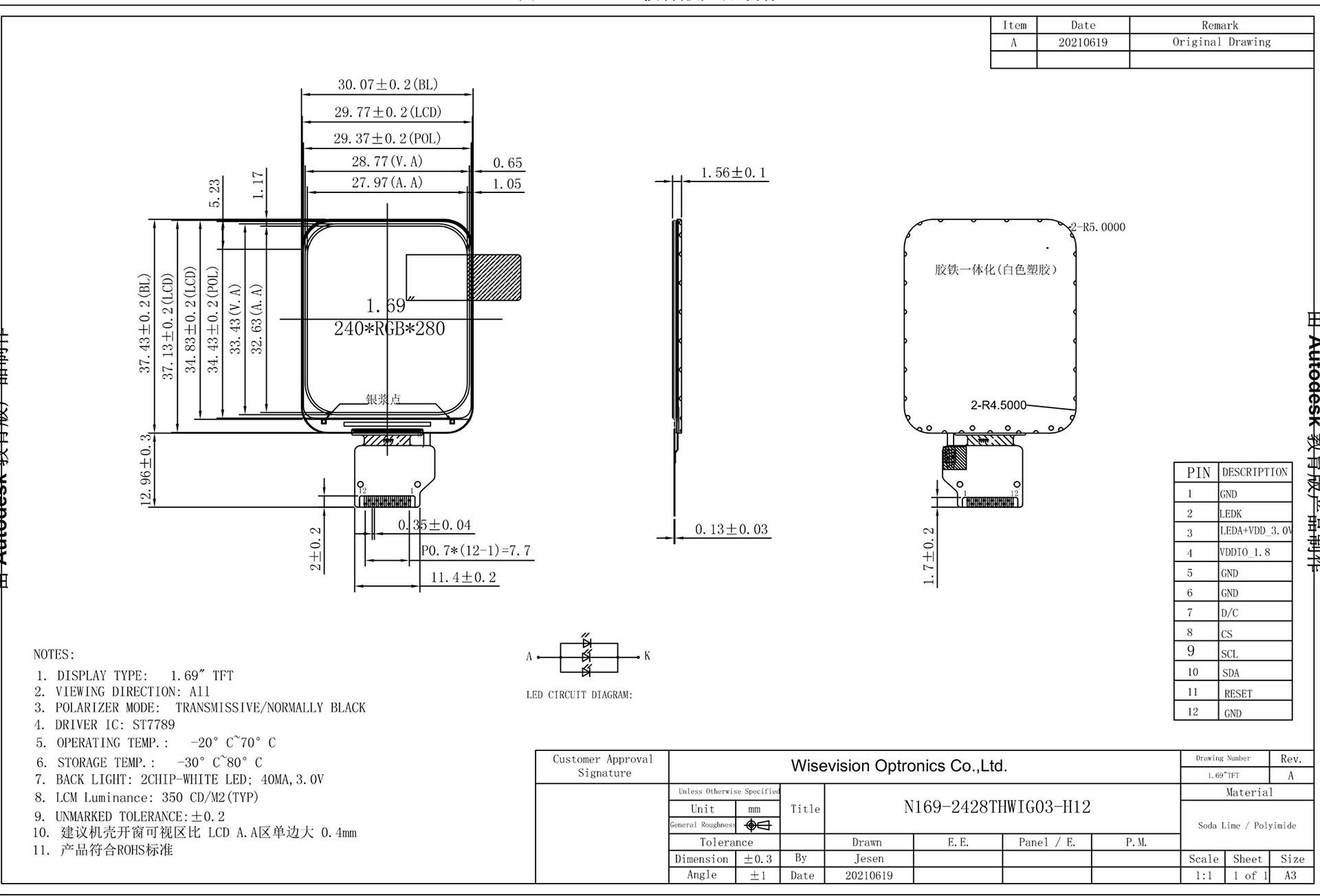

Mechanical Drawing
