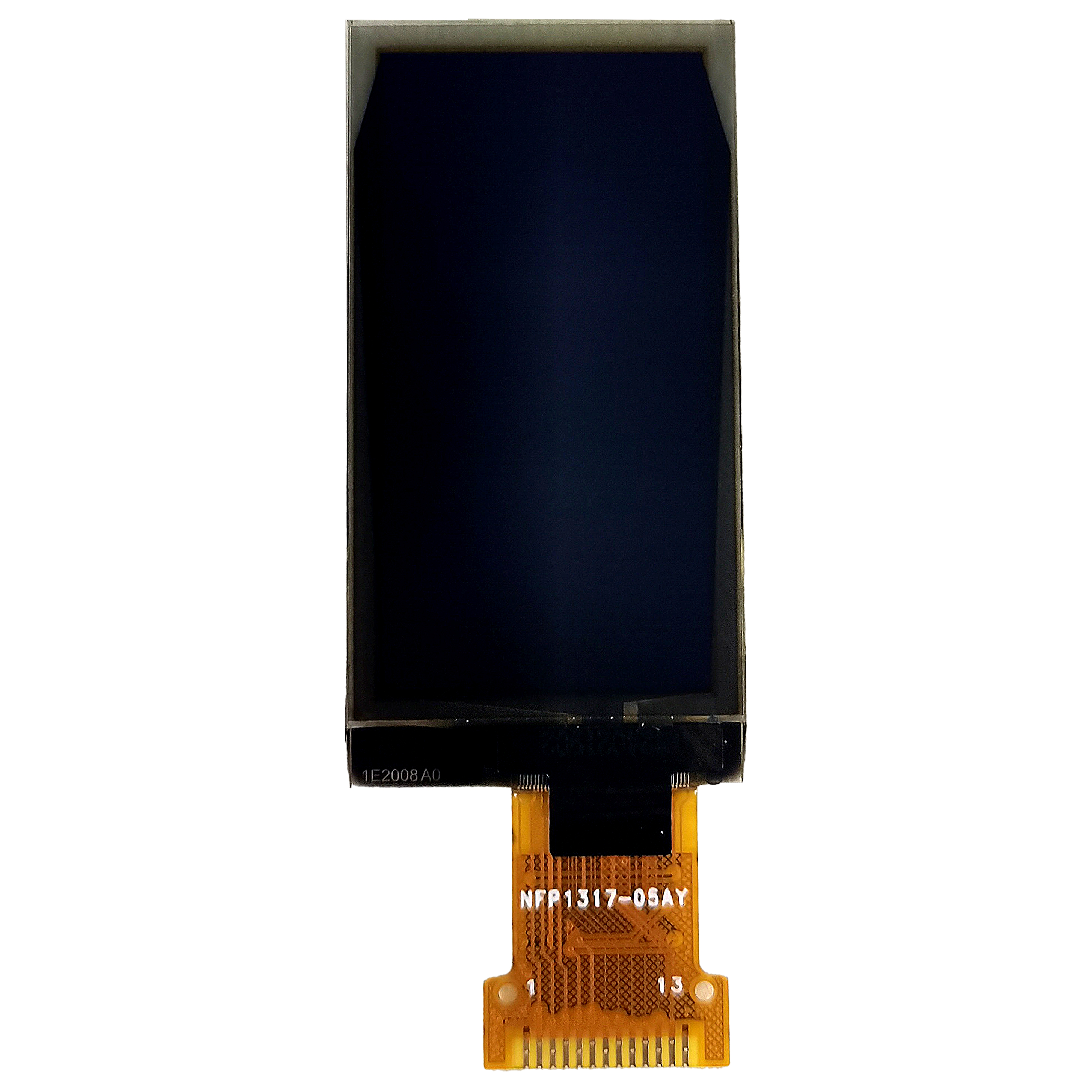

1.54 inch Small SIZE 64 × 128 Dots OLED Display Screen

Short Description:

Model No: X154-6428TSWXG01-H13

Size: 1.54 inch

Pixels: 64×128

A.A: 17.51×35.04 mm

Outline: 21.51×42.54×1.45 mm

Brightness: 70 (Min)cd/m²

Interface: I²C/4-wire SPI

Driver IC: SSD1317

Send email to us Download as PDF

Product Detail

Product Tags

General Description

Display Type	OLED
Brand name	WISEVISION
Size	1.54 inch
Pixels	64×128 Dots
Display Mode	Passive Matrix
Active Area (A.A)	17.51×35.04 mm
Panel Size	21.51×42.54×1.45 mm
Color	White
Brightness	70 (Min)cd/m²
Driving Method	External supply
Interface	I²C/4-wire SPI
Duty	1/64
Pin Number	13
Driver IC	SSD1317
Voltage	1.65-3.3 V
Weight	TBD
Operational Temperature	-40 ~ +70 °C
Storage Temperature	-40 ~ +85°C

Product Information

X154-6428TSWXG01-H13 1.54-inch Graphic OLED Display Module

Technical Specifications:

Display Type: COG (Chip-on-Glass) OLED
Resolution: 64×128 pixels
Dimensions: 21.51×42.54×1.45 mm (Outline)
Active Area: 17.51×35.04 mm
Built-in Controller: SSD1317
Interface Options: 4-Wire SPI / I²C
Power Requirements:
- Logic Supply: 2.8V (typical)
- Display Supply: 12V
Duty Cycle: 1/64

Key Features:

Ultra-thin COG structure
Low power consumption
Lightweight design
Wide operating temperature: -40℃ to +70℃
Storage temperature: -40℃ to +85℃

Applications:

Metering devices
Home appliances
Financial POS systems
Handheld instruments
Smart technology devices
Automotive displays
Medical equipment

Performance Advantages:
Our X154-6428TSWXG01-H13 OLED module delivers:

Crisp, high-contrast graphics
Excellent viewing angles
Fast response time
Reliable performance in extreme temperatures

Why Choose This Module?
Engineers and designers select this OLED display for its:

Compact form factor
Energy-efficient operation
Versatile interface options
Robust construction
Superior image quality

The OLED Display has the outline dimension of 21.51×42.54×1.45 mm and A.A size 17.51×35.04 mm; This module is built-in with SSD1317 controller IC; it supports 4-Wire SPI, /I²C interface, the supply voltage for Logic 2.8V (typical value), and the supply voltage for display is 12V. 1/64 driving duty.

Below Are The Advantages Of This Low-power OLED Display

1. Thin–No need of backlight, self-emissive;

2. Wide viewing angle :Free degree;

3. High Brightness: 95 cd/m²;

4. High contrast ratio(Dark Room): 10000:1;

5. High response speed(＜2μS);

6. Wide Operation Temperature;

7. Lower power consumption.

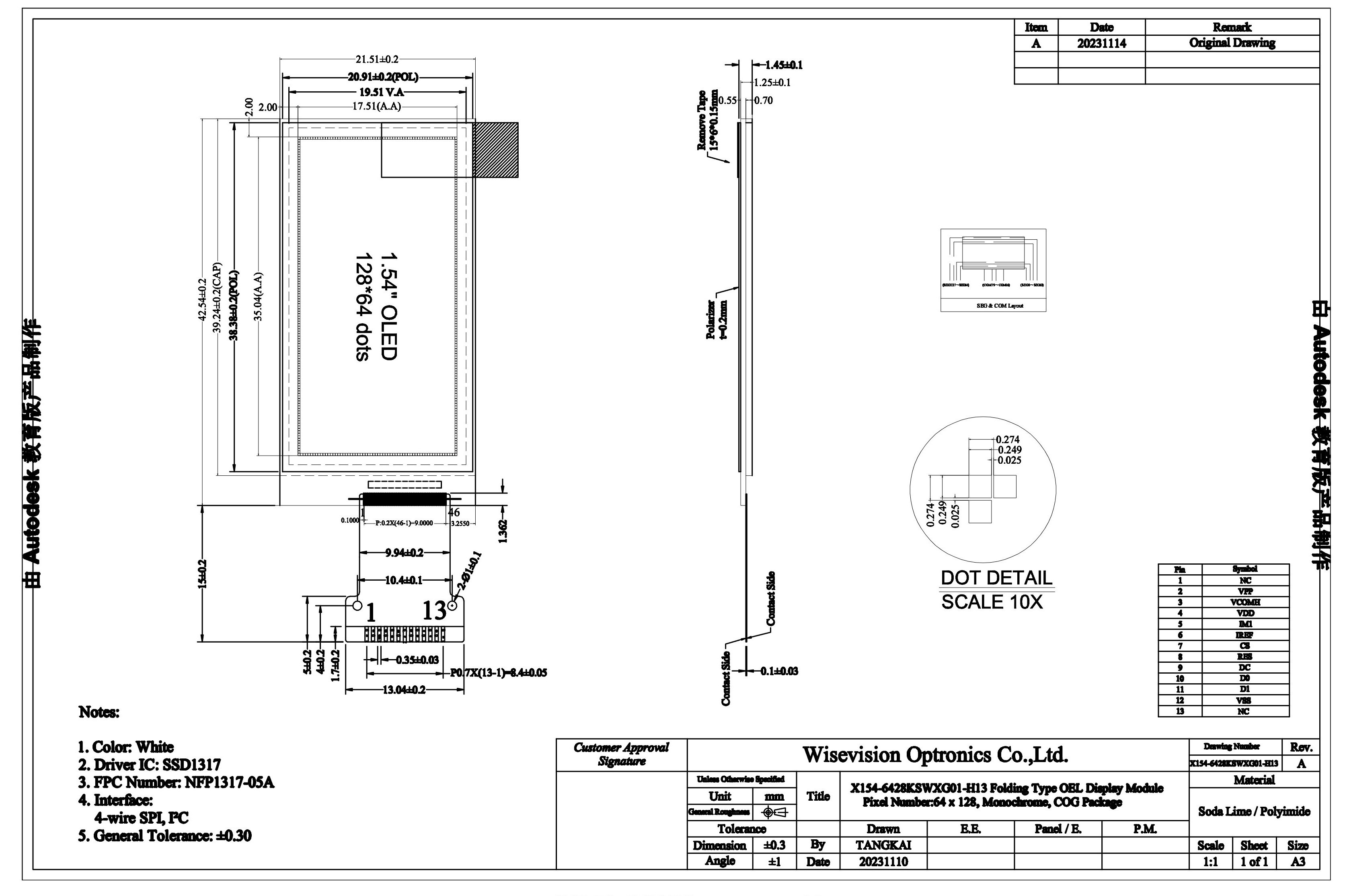

Mechanical Drawing

X154-6428KSWXG01-H13-Model(1)
