1.46 “ Small Size 80 RGB×160 Dots TFT LCD Display Module Screen

Short Description:

Model No: N146-0816KTBPG41-H13 Size: 1.46 inch

Pixels: 80×160 Dots

A.A: 16.18×32.35 mm

Outline: 18.08×36.52×2.1 mm

View Direction: ALL view

Interface: 4 Line SPI

Brightness(cd/m²): 350

Driver IC: GC9107

Touch Panel: Without Touch Panel

Send email to us Download as PDF

Product Detail

Product Tags

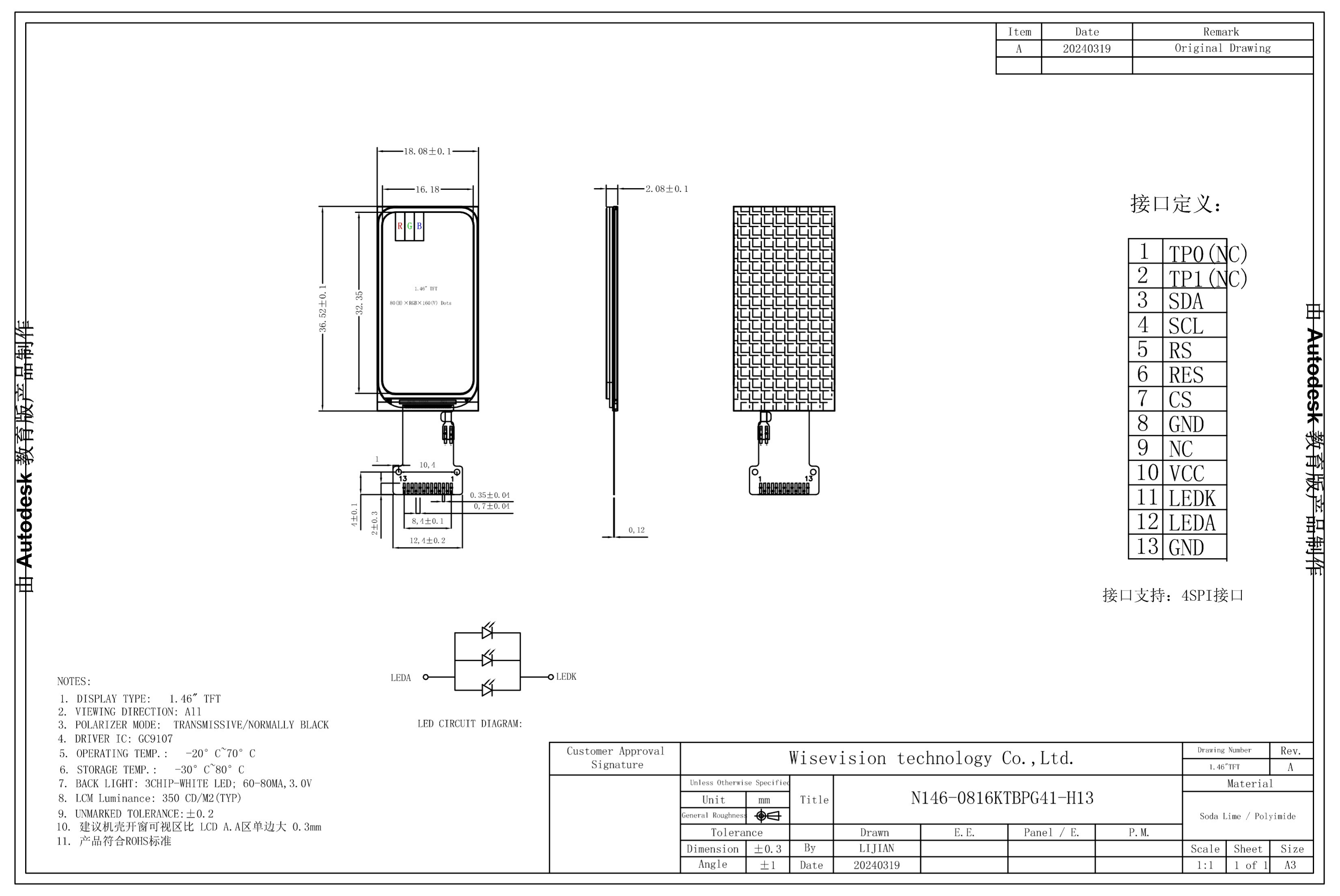

General Description

Display Type	IPS-TFT-LCD
Brand name	WISEVISION
Size	1.46 inch
Pixels	80×160 Dots
View Direction	ALL Review
Active Area (A.A)	16.18×32.35 mm
Panel Size	18.08×36.52×2.1 mm
Color arrangement	RGB Vertical stripe
Color	65 K
Brightness	350 (Min)cd/m²
Interface	4 Line SPI
Pin Number	13
Driver IC	GC9107
Backlight Type	3 WHITE LED
Voltage	-0.3~4.6 V
Weight	1.1
Operational Temperature	-20 ~ +70 °C
Storage Temperature	-30 ~ +80°C

Product Information

N146-0816KTBPG41-H13 is a 1.46-inch IPS TFT-LCD with a resolution of 80x160 pixels. supports various interfaces such as SPI, MCU and RGB, providing flexibility for seamless integration into any project. The display's brightness of 350 cd/m² ensures clear, vivid visuals even in bright lighting conditions. The monitor uses the advanced GC9107 driver IC to ensure smooth and efficient performance.
N146-0816KTBPG41-H13 adopts wide angle IPS (In plane Switching) technology. The viewing range is left: 80/right: 80/up: 80/down: 80 degrees. a contrast ratio of 800:1, and an aspect ratio of 3:4 (typical value). The supply voltage for analog is from -0.3V to 4.6V (the typical value is 2.8V).The IPS panel has a wide range of viewing angles, bright colors, and high-quality images that are saturated and natural. This TFT-LCD module can work under temperatures from -20℃ to +70℃, and its storage temperatures range from -30℃ to +80℃.
