0.54“ Micro 96×32 Dots OLED Display Module Screen

Short Description:

Model No: X054-9632TSWYG02-H14

Size: 0.54 inch

Pixels: 96x32 Dots

A.A: 12.46×4.14 mm

Outline: 18.52×7.04×1.227 mm

Brightness: 190 (Min)cd/m²

Interface: I²C

Driver IC: CH1115

Send email to us Download as PDF

Product Detail

Product Tags

General Description

Display Type	OLED
Brand name	WISEVISION
Size	0.54 inch
Pixels	96x32 Dots
Display Mode	Passive Matrix
Active Area (A.A)	12.46×4.14 mm
Panel Size	18.52×7.04×1.227 mm
Color	Monochrome (White)
Brightness	190 (Min)cd/m²
Driving Method	Internal supply
Interface	I²C
Duty	1/40
Pin Number	14
Driver IC	CH1115
Voltage	1.65-3.3 V
Weight	TBD
Operational Temperature	-40 ~ +85 °C
Storage Temperature	-40 ~ +85°C

Product Information

X054-9632TSWYG02-H14 is a small OLED display which is made of 96x32 dots, diagonal size 0.54 inch. X054-9632TSWYG02-H14 has the module outline of 18.52×7.04×1.227 mm and Active Area size 12.46×4.14 mm; it is built in with CH1115 controller IC; it supports I²C interface, 3V power supply. The module is a COG structure PMOLED display which is no need of backlight (self-emissive); it's lightweight and low power consumption. This 0.54-inch 96x32 small OLED display is suitable for wearable device, E-Cigarette, portable device, personal care appliance, voice recorder pen, health device, etc.

X054-9632TSWYG02-H14 module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.

All in all, the X054-9632TSWYG02-H14 OLED display module is a game changer in the world of display technology. Its 0.54-inch size, combined with a high-resolution display and superior brightness, delivers an unparalleled viewing experience.

With its I²C interface and CH1115 driver IC, this OLED display module ensures seamless connectivity and impressive performance. Whether you are creating the next generation of cutting-edge wearables or enhancing your industrial equipment, the X054-9632TSWYG02-H14 is the perfect choice for your display needs. Upgrade to future displays with the X054-9632TSWYG02-H14 OLED display module.

Below Are The Advantages Of This Low-power OLED Display

1. Thin–No need of backlight, self-emissive;

2. Wide viewing angle :Free degree;

3. High Brightness: 240 cd/m²;

4. High contrast ratio(Dark Room): 2000:1;

5. High response speed(＜2μS）;

6. Wide Operation Temperature.

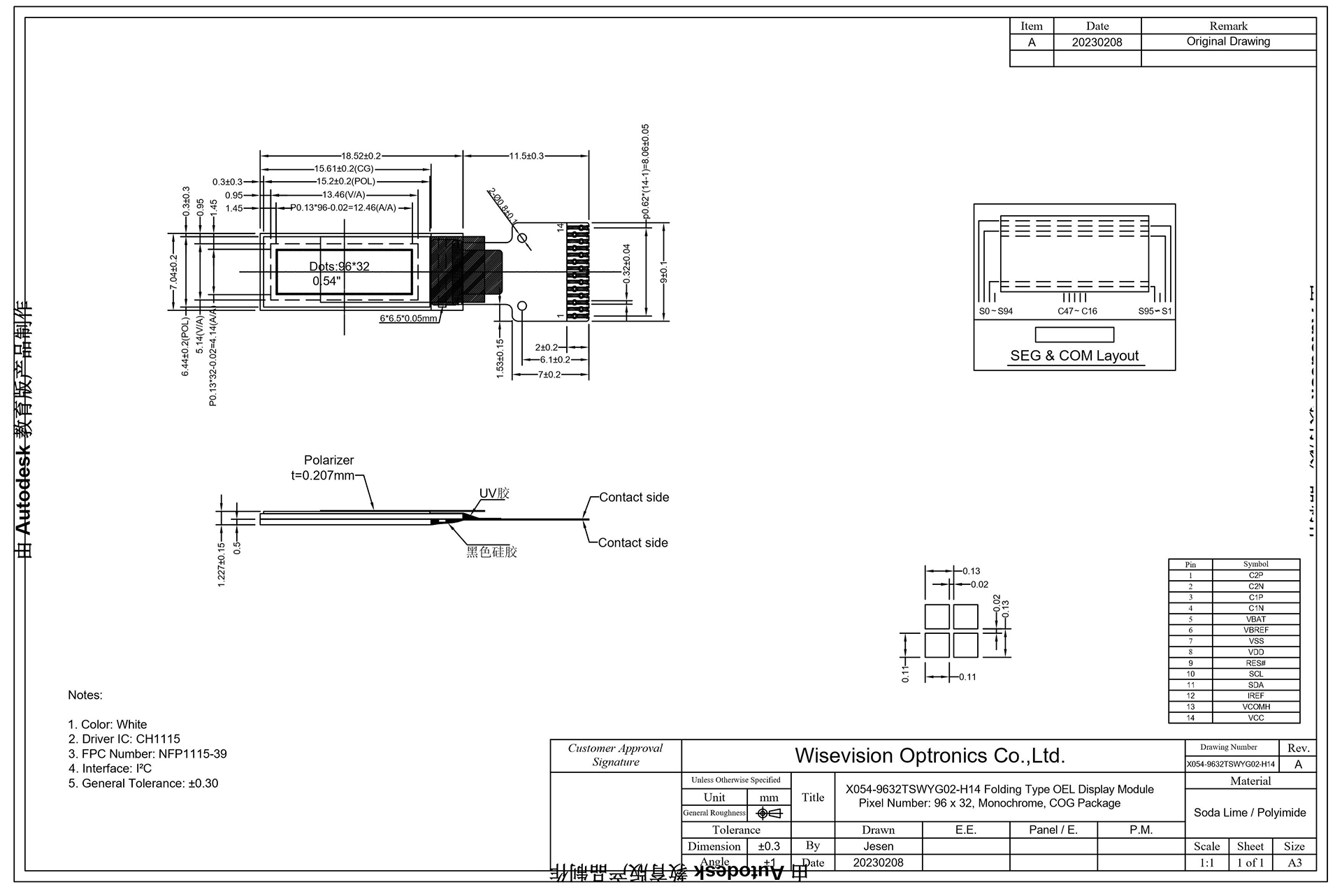

Mechanical Drawing
