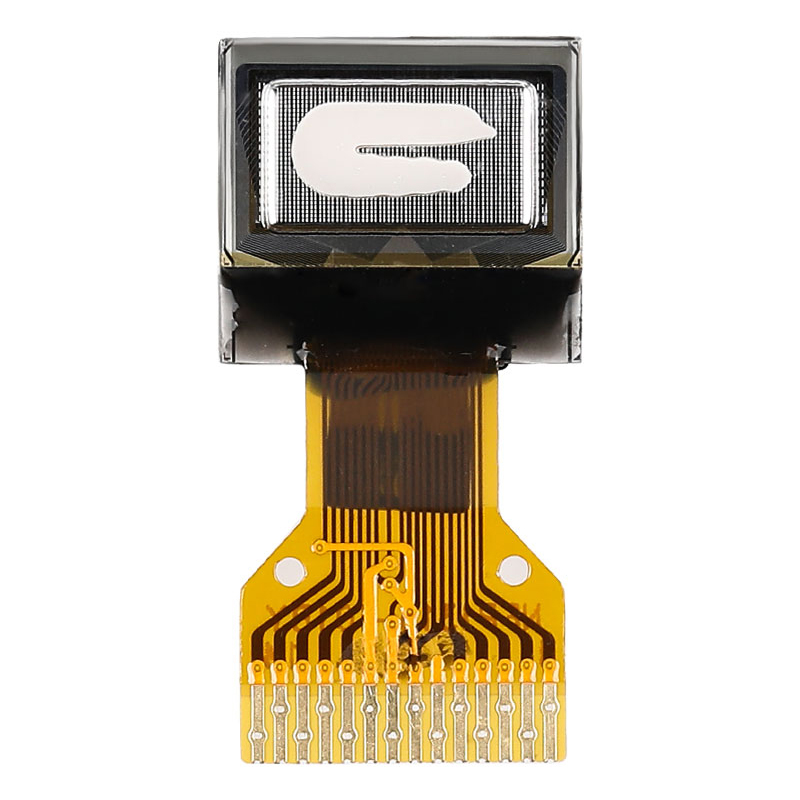

0.32“ Micro 60×32 OLED Display Module Screen
General Description
| Display Type | OLED |
| Brand name | WISEVISION |
| Size | 0.32 inch |
| Pixels | 60x32 Dots |
| Display Mode | Passive Matrix |
| Active Area(A.A) | 7.06×3.82mm |
| Panel Size | 9.96×8.85×1.2mm |
| Color | White(Monochrome) |
| Brightness | 160(Min)cd/m² |
| Driving Method | Internal supply |
| Interface | I²C |
| Duty | 1/32 |
| Pin Number | 14 |
| Driver IC | SSD1315 |
| Voltage | 1.65-3.3 V |
| Operational Temperature | -30 ~ +70 °C |
| Storage Temperature | -40 ~ +80°C |
Product Description
X032-6032TSWAG02-H14 is a COG OLED display module. This OLED display is built-in with SSD1315 IC; it supports I²C interface, the supply voltage for logic is 2.8V (VDD), and the supply voltage for display is 7.25V(VCC). The current with 50% checkerboard display is 7.25V (for white color), 1/32 driving duty.
X032-6032TSWAG02-H14 OLED display module can be operating at temperatures from -40℃ to +85℃; its storage temperatures range from -40℃ to +85℃.
This OLED display module is built with extreme precision and attention to detail, delivering superior performance and outstanding reliability. Its versatility makes it compatible with a wide range of applications, from consumer electronics to industrial machinery. No matter what your needs are, the X032-6032TSWAG02-H14 OLED display module is sure to exceed your expectations.
Below are the advantages of this low-power OLED display:
1、Thin–No need of backlight, self-emissive
►2、Wide viewing angle :Free degree
3、High Brightness: 180 cd/m²
4、High contrast ratio(Dark Room): 2000:1
►5、High response speed(＜2μS）
6、Wide Operation Temperature
►7、Lower power consumption
Below are the advantages of this low-power OLED display:
1. Thin–No need of backlight, self-emissive.
2. Wide viewing angle :Free degree.
3. High Brightness: 160 (Min)cd/m².
4. High contrast ratio(Dark Room): 2000:1.
5. High response speed(＜2μS).
6. Wide Operation Temperature.
7. Lower power consumption.

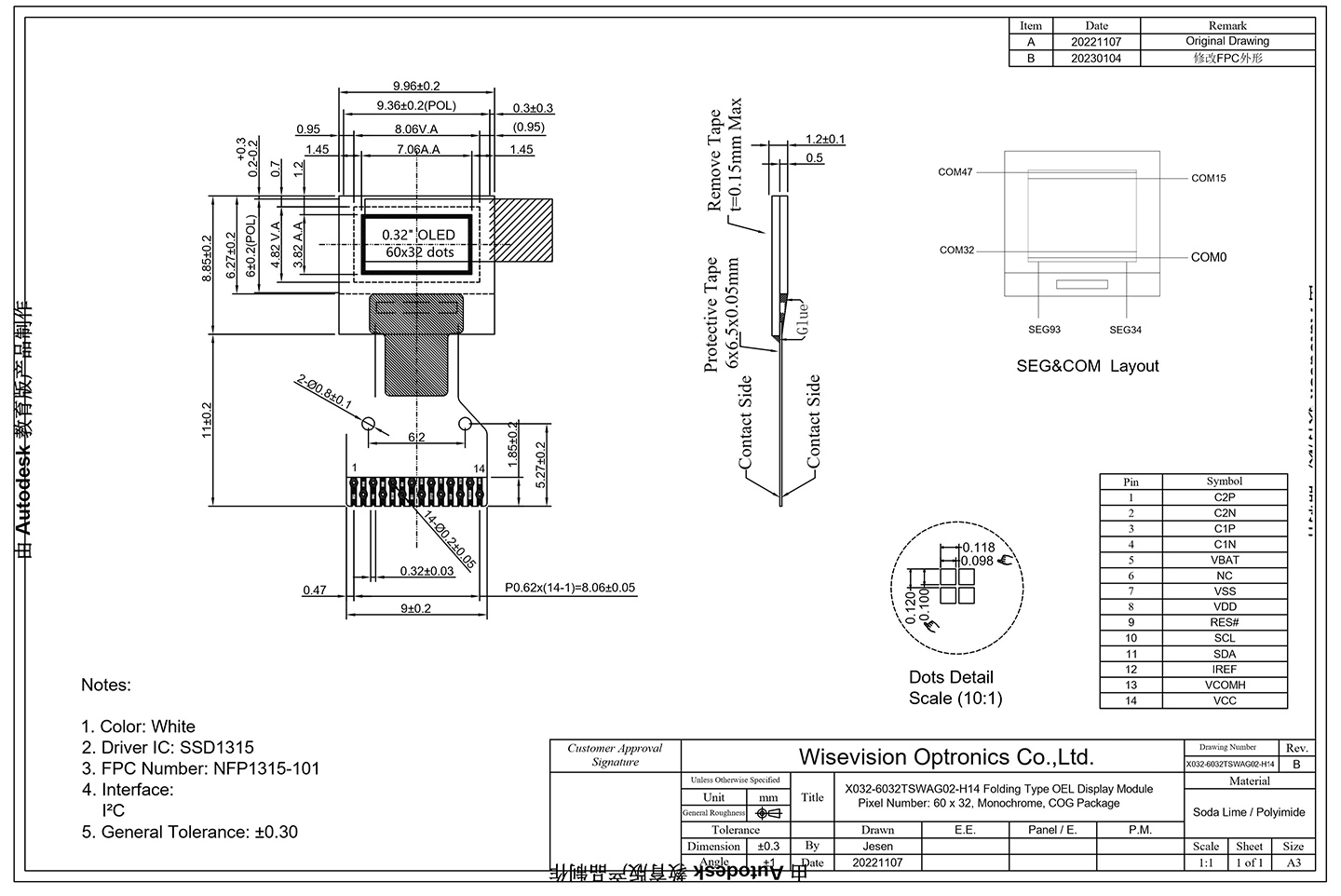

Mechanical Drawing
As a leading display manufacturer, we specialize in the research, development, and production of TFT LCD technology, committed to providing customers with high-performance and high-quality display solutions. Our products cover a wide range of sizes and application scenarios, including industrial controls and smart home devices, meeting stringent requirements across various fields for clarity, response speed color performance, and energy efficiency.
With advanced manufacturing processes and continuous technological innovation, we possess significant advantages in high resolution, wide viewing angles, low power consumption, and high integration. At the same time, we maintain strict control over product quality, offering reliable display modules and customized services to help customers enhance the competitiveness and user experience of their end products.
If you are seeking a display partner with stable supply and technical support, we look forward to collaborating with you to shape the future of display technology together.
the key advantages of this low-power OLED display:
Ultra-Thin Profile: Unlike traditional LCDs, it requires no backlighting unit as it is self-emissive, resulting in a remarkably slim form factor.
Exceptional Viewing Angles: Offers virtually unrestricted freedom with wide viewing angles and minimal color shift, ensuring consistent image quality from various perspectives.
High Brightness: Delivers a minimum brightness of 160 cd/m², providing clear and vibrant visibility even in well-lit environments.
Superior Contrast Ratio: Achieves an impressive contrast ratio in dark room conditions, producing deep blacks and vivid highlights for enhanced image depth.
Rapid Response Time: Boasts an exceptionally fast response speed of less than 2 microseconds, eliminating motion blur and ensuring smooth performance in dynamic visuals.
Broad Operating Temperature Range: Functions reliably across a wide spectrum of temperatures, making it suitable for diverse environmental conditions.
Energy-Efficient Performance: Consumes significantly less power compared to conventional displays, contributing to extended battery life in portable devices and reduced energy usage.
